Regulator Freezing Up? Fix Flow Dropouts (CGA-580) Before You Burn More Consumables

Featured Product Quick Take

What This Fix Solves

• •Shielding gas that starts fine, then drops or becomes inconsistent mid-shift
• •Porosity that appears after longer weld cycles (not on the first bead)
• •Arc instability that comes and goes when nothing else changed
• •Frosting/icing on the regulator body during high draw (common in colder shops)
• •Repeat rework because you keep adjusting settings instead of fixing gas delivery

Root Cause Breakdown

1. High sustained flow demand: Long beads, higher wire speeds, or multiple stations pulling from the same supply increase draw. Under sustained demand, weak or mismatched regulation can show up as flow dropouts.
2. Small leaks that become big problems: A slow leak at the cylinder/regulator/hose connection can reduce effective delivery and create inconsistent coverage. It also wastes gas and makes troubleshooting confusing.
3. Wrong inlet (CGA mismatch) or forced threads: A CGA mismatch can appear to tighten but not seal correctly. That can cause leaks and unstable delivery. CGA-580 is common for argon/helium/nitrogen family cylinders; verify your cylinder valve.
4. Turbulence from excessive flow: Too much flow can create turbulence at the nozzle and actually pull air into the shielding stream. The symptom looks like low flow, but the cause is too much flow.
5. Nozzle/diffuser restriction: Spatter buildup inside a MIG nozzle restricts gas coverage and can mimic a regulator issue. Confirm the torch front end is clean before you replace gas equipment.

The Fix (Actionable Steps)

1. Confirm the cylinder gas and inlet type (CGA). This product is listed as CGA-580. Verify your cylinder valve matches.
2. Leak-check every connection (cylinder to regulator to hose to machine) using an approved leak-detection solution.
3. Set a baseline flow appropriate for your nozzle size and environment. Avoid excessive flow that creates turbulence.
4. Inspect the torch front end: clean spatter from the nozzle and confirm diffuser/nozzle seating.
5. If you see frosting/icing during sustained use, stabilize the gas delivery setup and confirm the regulator is appropriate for your gas and duty.
6. Re-test on scrap with the same joint and technique before changing machine settings.

Note: We are not publishing fixed CFH numbers here because flow depends on nozzle size, drafts, and process. The goal is stable delivery first.

Key Specs / Fitment Notes (Bullets Only)

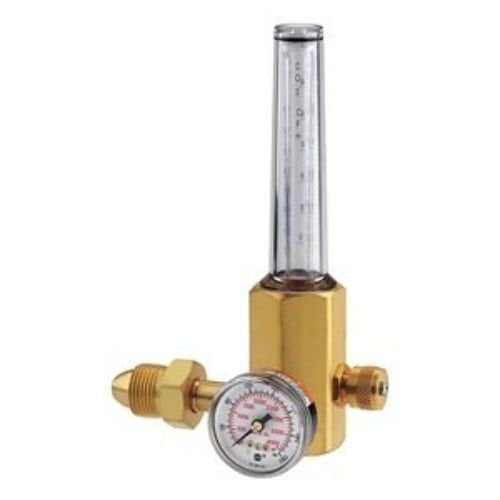

• •Product: Smith H2051B-580 single stage flowmeter regulator (product title)
• •SKU: H2051B-580 (product page)
• •CGA inlet: 580 (product page)
• •Delivery pressure: 50 psi (product title)
• •Outlet connection: 5/8-18 RH internal thread (product page)
• •Overall length: 3.25 in (product page)
• •Body diameter: 2 in (product page)
• •Gauge size: 1.5 in (product page)

Before You Order Checklist

Recommended Accessories (Priority Order)

Comparison Block (Alternatives)

Safety Note

Compressed gas equipment is safety-critical. Secure cylinders, leak-check connections with an approved leak-detection solution, and do not force mismatched CGA fittings. Shielding gas can displace oxygen in confined spaces  use adequate ventilation. If you suspect damaged threads, regulator creep, or persistent leaks, stop and have the equipment inspected by a qualified technician.
