TIG Gas Coverage Weak? Upgrade to a Gas Lens Collet Body Before You Crank the Flow
If your TIG welds look clean on a short stick-out but turn gray the moment you reach into a corner, you are almost always fighting shielding coverage. The cost is real: you re-grind, you re-brush, you re-weld and you burn argon trying to compensate.
Across TIG troubleshooting threads, one pattern repeats: welders increase flow to fix oxidation, but the extra flow creates turbulence and makes shielding worse. The better fix is improving the flow pattern at the cup. A gas lens collet body is a common, practical upgrade when you need stable coverage on longer stick-out.
Featured Product Quick Take

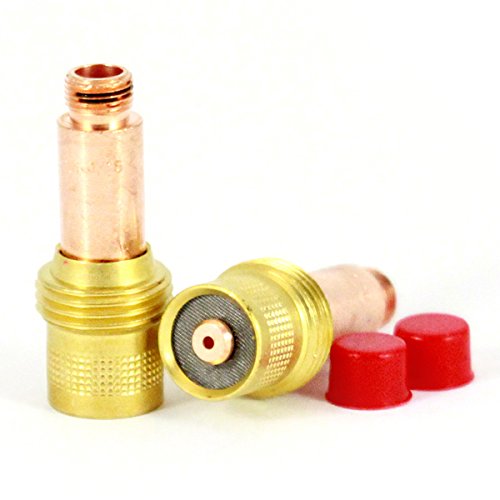

- Name: TIG Gas Lens Collet Body #17, 18, 26 Torch 2PK (45V26-3/32")
- SKU: 45V26
- Price: Unknown (Verify)
- What it fixes: shielding breakdown and oxidation when you extend tungsten stick-out or weld in tight joints, by improving gas flow stability at the cup.
- Why it matters: Most TIG oxidation problems are gas coverage problems. A gas lens collet body helps produce smoother (more stable) gas flow so your shielding holds together longer which reduces gray starts, sugaring on stainless, and rework.
- •Brand: Weldmark (product page)
- •Product: TIG Gas Lens Collet Body (product title)
- •Torch family: #17 / #18 / #26 (product title)
- •Size: 3/32" (product title)
- •Pack size: 2PK (product title)
- •SKU: 45V26 (product page)
- •Thread/series details: Unknown (Verify)
Fitment note: this is for #17/#18/#26 torches and 3/32" tungsten setups. TIG front-end parts are torch-family and size specific. If you run a #9/#20 torch, this is the wrong family.
What This Fix Solves
- •Gray/sooty starts on clean stainless even when amperage looks right
- •Oxidation that shows up when you extend stick-out to reach a corner
- •Sugaring on stainless (especially at the start of the bead) when coverage breaks down
- •Shielding that collapses in light drafts or when you angle the torch
- •Argon waste from cranking flow to compensate for turbulent coverage
Root Cause Breakdown
- Turbulent gas flow from a standard collet body: Standard (non-lens) collet bodies can produce more turbulence at the cup exit. Turbulent flow breaks apart faster, especially when you extend stick-out or weld in a tight joint.
- Stick-out longer than the shielding envelope can support: The farther the tungsten is from the cup, the easier it is for air to mix into the shielding stream. This is why oxidation often appears only when you reach into corners.
- Drafts and air movement: Fans, open doors, and cross-breezes strip shielding away. A more stable flow pattern helps, but you still need to control drafts.
- Trying to fix coverage by increasing flow too far: Higher flow can create turbulence at the cup exit and actually pull air into the stream. The symptom looks like low flow, but the cause is too much flow.
- Front-end stack mismatch (parts that almost fit): TIG cups, collets, collet bodies, and back caps are not universal. Mismatched parts can seat poorly and create unstable coverage and repeat contamination.
The Fix (Actionable Steps)
- Confirm your torch family first: this collet body is listed for #17/#18/#26. If you run a #9/#20 torch, stop and match the correct family.
- Confirm tungsten diameter: this part is listed as 3/32". Match your collet and tungsten to 3/32" as well.
- Install the gas lens collet body as part of a matched front-end stack (collet body + collet + cup). Do not mix random parts.
- Set a conservative argon baseline and avoid over-cranking flow. If coverage improves with the lens, you may be able to reduce flow while maintaining bead color.
- Control drafts: block direct airflow across the joint before you assume you need more gas.
- Re-test on clean material. If bead color stabilizes and oxidation disappears, the root cause was gas coverage.
Note: We are not publishing fixed CFH numbers because flow depends on cup size, stick-out, and drafts. The goal is stable coverage not maximum flow.
Key Specs / Fitment Notes (Bullets Only)
- •Product: TIG Gas Lens Collet Body #17, 18, 26 Torch 2PK (45V26-3/32") (product title)
- •Brand: Weldmark (product page)
- •SKU: 45V26 (product page)
- •Torch family: #17/#18/#26 (product title)
- •Size: 3/32" (product title)
- •Pack size: 2PK (product title)
- •Compatible cups/collets list: Unknown (Verify)
Before You Order Checklist
- Machine: welder make/model
- Process: TIG (DCEN vs AC)
- Material: stainless / mild steel / aluminum
- Thickness: typical thickness range
- Consumables: tungsten diameter (3/32") + cup size + collet + collet body style (gas lens vs standard)
- Torch/gun: torch family (#17/#18/#26 vs #9/#20)
- Gas: argon flow baseline + cup size + draft conditions
Fastest confirmation: call 812-738-4344 with your torch family (#17/#18/#26 vs #9/#20), tungsten diameter, and what material you weld most.
Recommended Accessories (Priority Order)
Comparison Block (Alternatives)
Best when you need more stable shielding on longer stick-out or tight joints. Must match torch family (#17/#18/#26) and tungsten size (3/32").
Often fine for short stick-out in calm shop conditions. More sensitive to drafts and longer stick-out.
Common mistake. Excessive flow can create turbulence and pull air into the shielding stream. Fix the flow pattern and drafts first.
Safety Note
Shielding gas can displace oxygen in confined spaces. Use adequate ventilation and secure cylinders properly. Do not modify torch parts to make them fit. If you are unsure about torch family or tungsten size, stop and verify before ordering.
Add to Cart or Confirm Torch Family First
Add the Weldmark 45V26 gas lens collet body (3/32", #17/#18/#26, 2-pack) to your cart if you can confirm your torch family and tungsten size. Not sure? Call 812-738-4344 with machine model + process + thickness.
